24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance

    Buy cheap 24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance from wholesalers

    Buy cheap 24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance from wholesalers
    • Buy cheap 24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance from wholesalers
    • Buy cheap 24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance from wholesalers

    24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance

    Ask Lasest Price
    Brand Name : RiBo
    Model Number : RiBo-12CR600
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 10 PCS/Month
    Delivery Time : 120 days
    • Product Details
    • Company Profile

    24000BPH 500ml Stretch Blow Molding Machine Easy Maintenance

    500ml Water , Carbonated Soft Drink , Energy Drinks Bottle Stretch Blow Molding Machine


    This series is widely used for making PET bottle for drinking water, carbonated soft drink, medium temperature filling drink, milk,


    edible oil, food, daily chemical……ect.


    Machine Performance and Features


    1.The built-in continuous rotating infeed system effectively reduces the space occupied. The consistency of preform position


    streamlines the process,before feed-in the preforms into the heating ovens,the preform no need to flip over;After blown the


    bottle,finished bottle no need to flip over,makes the bottle processing more simpler and improved the efficiency.


    2. 38mm pitched, more preforms are uninterruptedly heated within the same distance, which improves the efficiency and energy


    saving (energy saving can be up to 50%).


    3. The thermostatic heating system ensure that the heating temperature of each preform surface and internal is uniform. Hinged


    oven holders make it easy for the operators to change infrared tubes and do maintenance.


    4. The perform transfer system with grippers and the variable pitch system are both driven by the servo motors to ensure high


    speed and accurate preform handling between the two mechanism.


    5. The Servo driven the molding mechanism, triggering off the linkage to the bottom mold. The application of high speed


    precision blowing valve unit helps to make high capacity.


    6. The cooling system for the preform neck is equipped to ensure the preform neck does not deform during heating and


    blowing.


    7. The high pressure blowing system is equipped with the air recycling device which may reduce the air consumption to achieve


    the energy-efficient and environmental safe.


    8. Being highly intelligent, the machine is equipped with the units of preform temperature detection, leaking bottle detection and


    rejection as well as jammed air conveyor detection, ect, which ensures the machine work efficiently and stably.


    9. Operation on the touch screen is simple and easy.

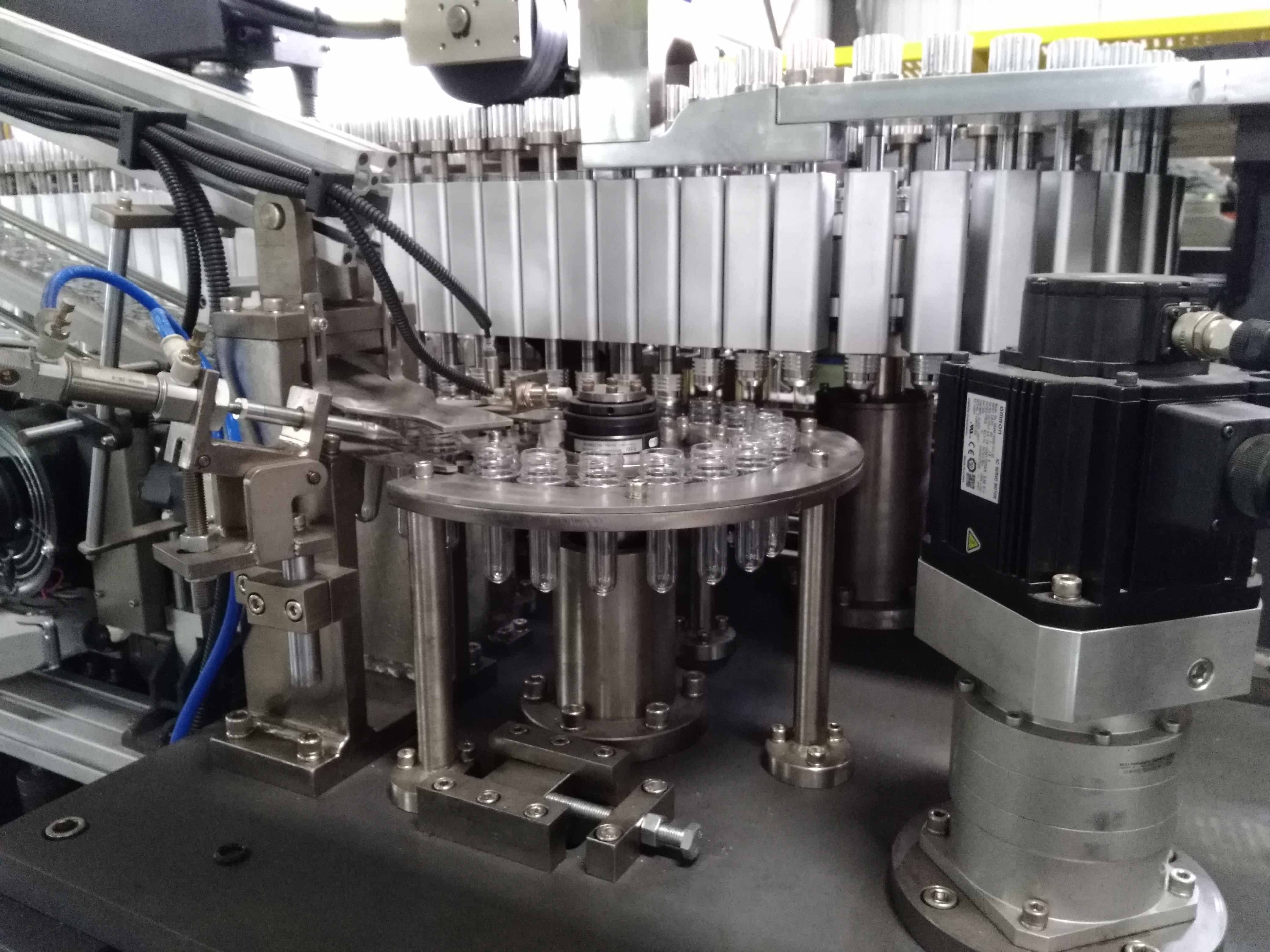

    The parts of machine


    Machine Technical Parameter


    ItemsUnitModel
    RiBo-12CR600
    Molding Spec.Preform Pitchmm76
    Preform Heating Pitchmm38
    No.of Cav.cav.12
    Container Spec.Max.Container VolumeL0.7
    Neck Diameter Rangemm18~30
    Max.Containr Diametermm70
    Max.Containr Heightmm240
    ※※Theoretical Outputbph24000
    Power Spec.Rated PowerKW147
    Power ConsumptionKW50~68
    Compressor Spec.Blowing PressureMpa2.5~3.2
    Air Consumingm3/min12
    Main Machine Spec.Sizemm8641*3640*3300
    WeightKg11000
    Note*Due to continuous technical development specification would be improved without prior notice.
    *Special designs correspond to customers needs.

    Machine shipment pictures
