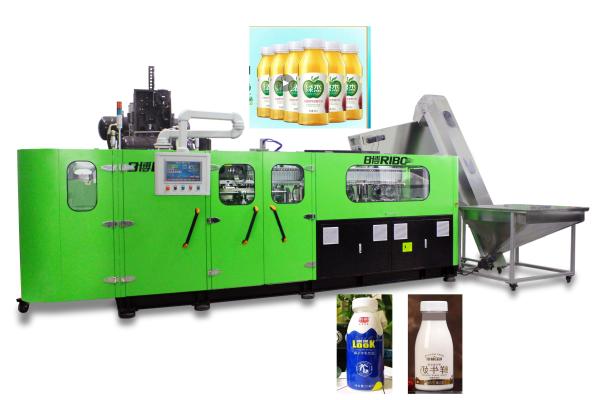

Energy Saving Water / Milk / Bottle Blow Moulding Machine Efficient
Making PET Bottle
Performance and Characteristics
1. The built-in continuous rotating infeed system effectively
reduces the space occupied. The consistency of preform position
streamlines the
process.
2. 48mm pitched, more preforms are uninterruptedly heated within
the same distance, which improves the efficiency and energy saving
(energy
saving can be up to 40%).
3. The thermostatic heating system ensure that the heating
temperature of each preform surface and internal is uniform.Hinged
oven holders make it easy for the operators to change infrared
tubes and do maintenance.
4. The perform transfer system with grippers and the variable pitch
system are both driven by the servo motors to ensure high speed and
accurate preform handling between the two mechanism.
5. The Servo driven the molding mechanism, triggering off the
linkage to the bottom mold. The application of high speed precision
blowing valve unit helps to make high capacity.
6. The cooling system for the preform neck is equipped to ensure
the preform neck does not deform during heating and blowing.
7. The high pressure blowing system is equipped with the air
recycling device which may reduce the air consumption to achieve
the energy-efficient and environmental safe.
8. Being highly intelligent, the machine is equipped with the units
of preform temperature detection, leaking bottle detection and
rejection as well as jammed air conveyor detection, ect, which
ensures the machine work efficiently and stably.
9. Operation on the touch screen is simple and easy.
10. This series is applied in making PET bottle for drinking water,
beverages,liquid milk drinks……ect.
Technical parameter
| Items | Unit | Model |
| RiBo-6CR48-1.5L |
| Molding Spec. | Preform Pitch | mm | 105 |
|
| Preform Heating Pitch | mm | 48 |
| No.of Cav. | cav. | 6 |
| Container Spec. | Max.Container Volume | L | 1.5 |
|
| Neck Diameter Range | mm | 38 |
| Max.Preform height | mm | 150 |
| Max.Preform diameter | mm | 37.5 |
| Max.Containr Diameter | mm | 97 |
|
| Max.Containr Height | mm | 320 |
|
| ※※Theoretical Output | bph | 12000~9000 |
|
| Power Spec. | Rated Power | KW | 123 |
|
| Power Consumption | KW | 45~58 |
|
| Compressor Spec. | Blowing Pressure | Mpa | 2.8~3.2 |
|
| Air Consuming | m3/min | 6~8 |
|
| Main Machine Spec. | Size | mm | 7643x3312x3250 |
|
| Weight | Kg | 7800 |
|
*Due to continuous technical development specification would be
improved without prior notice.
*Special designs correspond to customers needs.
