New Product High Speed Automatic Bottle Blowing Machine Prices Blow Molding Machine Manufacturer

R series linear full electric PET bottle blow molding machine is a high speed automatic PET blower designed and

developed with the most advanced bottle blowing technology at present, the advantages of which can be described as speedy,

stable, simple, general purposed and environmental safe. It is mainly applicable in blow molding cold filling and mesothermal

filling PET containers for drinking water, beverage, food, daily chemical products, etc. The machine yields abundantly with high

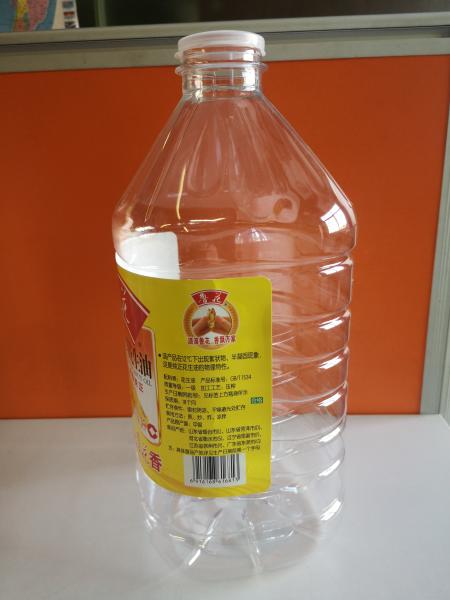

efficiency. The capacity of each cavity has been increased to 1200bph when the bottle size is equal to or less than 5L

respectively, which can meet the high-end customer's requirements. Equipped with preform auto loading system, the machine

works fully automatically with consistent performance and high speed, without any operator's interference during the whole

processes. Accordingly, chance of contamination can be reduced manifestly, which assures the quality of products.

Performance and Advantages

i.The man-machine interface is easy to operate. Everything is computerized, including temperature adjustment and preform

distribution.

ii.Independent movable operation pannel, make the operation more convenient and flexible.

iii.Preform unscrambling, loading, bottle handling and ordering are all operated by stainless steel manipulator automatically

without a second contamination.

iv.During the process of the automatic embryo preform feeding system, each preform channel has photoelectric detection,

control the action of the upper motor and the parting cylinder, ensure the uniform distribution of the preform in each embryo

channel, and have the function of alarming the material shortage.

v. The circulating chilling water system as well as the fan with converter controlled can protect the bottle neck against

deformation when the preform is being heated.

vi. The homothermal heater adopts auto reflection and closed loop adjusting system which have the power supplied constantly

in proportion, not affected by the fluctuation of voltage. The conveying chain is short pitched and paratactic, which helps to

realize slow heating and low power consumption. As a result, the preform can be heated evenly and easy to blow.

vii. The positioned installation of molds makes it possible to change molds easily within one hour,the operator only need to

stand on the ground can finish this job, no need to stand on the machine frame,the safety for person is much higher.

viii. All the critical parts we use for the machines, such as the electrical, pneumatic components, servo motor, etc, are famous

branded parts imported from Japan, USA and Europe,which ensures the stability and long life of our equipments.

ix.The high pressure blowing valve is equipped with the device of converting to low pressure air, which can ensure the normal

conversion without low pressure air. Machine is equipped with the high pressure air recovery device, in the process of bottle

blowing production, the high pressure air can be recoveried and used for the cylinders/ pre-blow.

Technical Parameter
