    9 Cavity Automatic Pet Blow Molding Machine For 0.2L-1.5L Bottle Volume

    Ask Lasest Price
    Brand Name : RIBO
    Model Number : RiBo-9CR1.5L
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100 PCS/Year
    Delivery Time : 120 days
    • Product Details
    • Company Profile

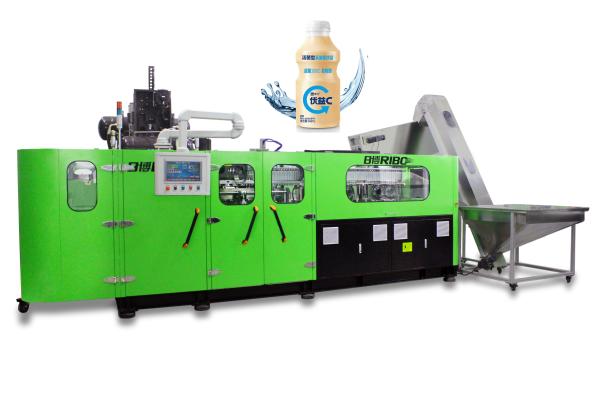

    9 Cavity Automatic Pet Blow Molding Machine For 0.2L-1.5L Bottle Volume

    PET Water Bottle / CSD Drinks Bottle Automatic Blow Moulding Machine Made In China


    1 . Full automatic blow moulding machine is suitable for making PET Plastic containers.


    2 . It can blow all kind of bottles in shapes:mineral water , carbonated bottle , milk drink bottle , edible oil bottle , and other


    packing containers.


    3 . Saving the cost to the maximum extent , saving the electricity consumption up to 50 %.


    4 . Rejection rate is controlled within 0.3% , higher production , and stable performance then the traditional structure


    type,moreover,the machine running more smoothly and intelligently.


    PET Water Bottle / CSD Drinks Bottle Stretch blowing Machine Technical Parameters


    ItemsUnitModel
    RiBo-9CR1.5L
    Molding Spec.Preform Pitchmm105
    Preform Heating Pitchmm38
    No.of Cav.cav.9
    Container Spec.Max.Container VolumeL1.5
    Neck Diameter Rangemm18~30
    Max.Containr Diametermm97
    Max.Containr Heightmm320
    ※※Theoretical Outputbph18000~13500
    Power Spec.Rated PowerKW147
    Power ConsumptionKW48~68
    Compressor Spec.Blowing PressureMpa2.5~3.2
    Air Consumingm3/min8~10
    Main Machine Spec.Sizemm7869*3400*3200
    WeightKg10500
    *Due to continuous technical development specification would be improved without prior notice.
    *Special designs correspond to customers needs.
