500ml Drinking Water Bottle,Carbonated Drinks Energy Saving PET
Bottle Blow Molding Equipment factory
8 Cavity full electric energy saving PET bottle blowing machine for
mineral water bottles,carbonated soft drink,medium temperature
filling drink,milk,edible oil,food,daily chemical......etc.
High speed water bottle making machine picture and parameter as
follow:

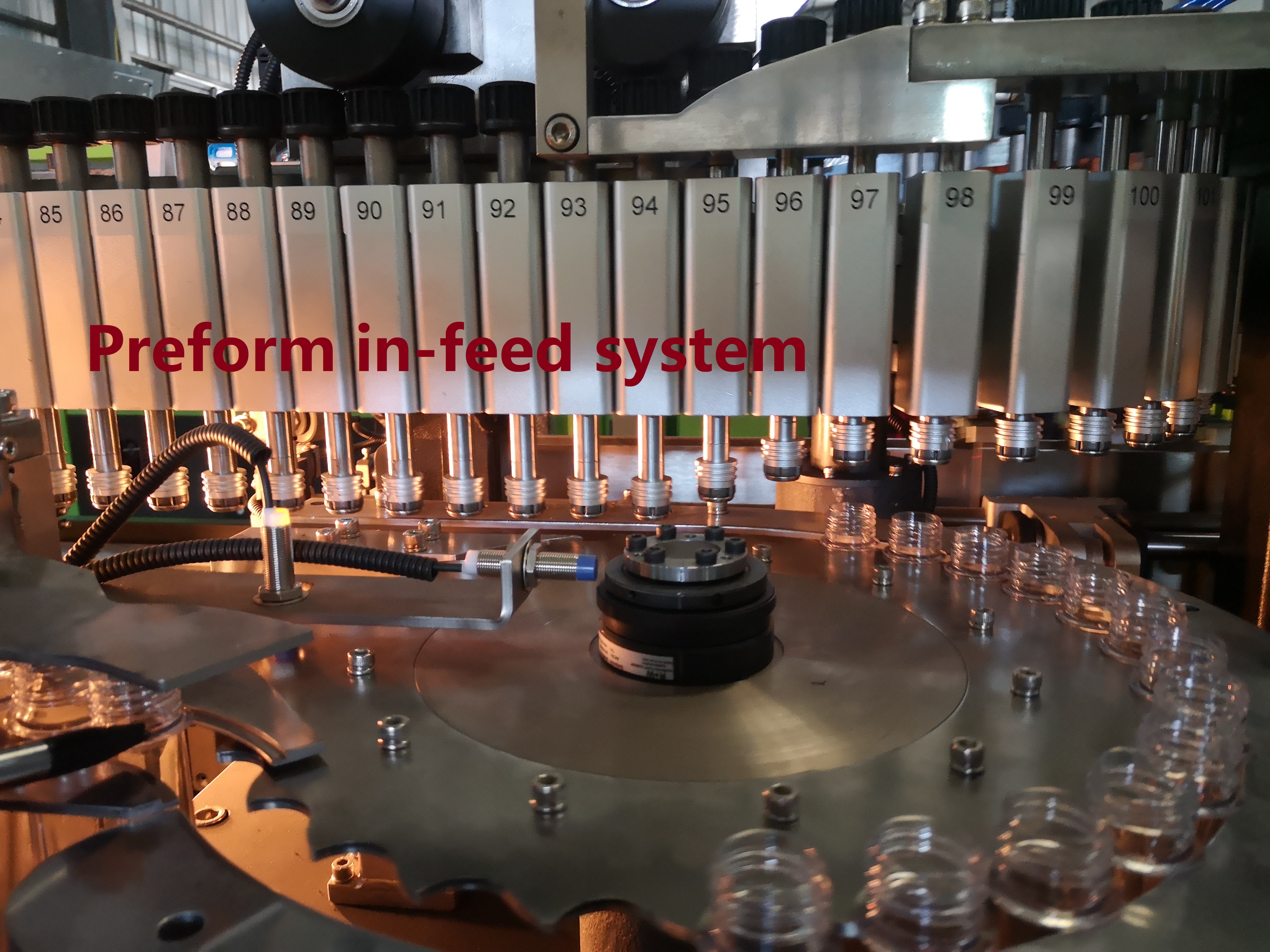

Preform heating system is same with the rotary machine,the built-in
continuous rotating infeed system effectively reduces the space preform is hanged and heated without flip over,the consistency of
preform position streamlines the process.
38mm preform heating pitch,more preform are ininterruptedly heated
within the same distance,which improves the efficiency and energy
saving(energy saving can be up to 50%)

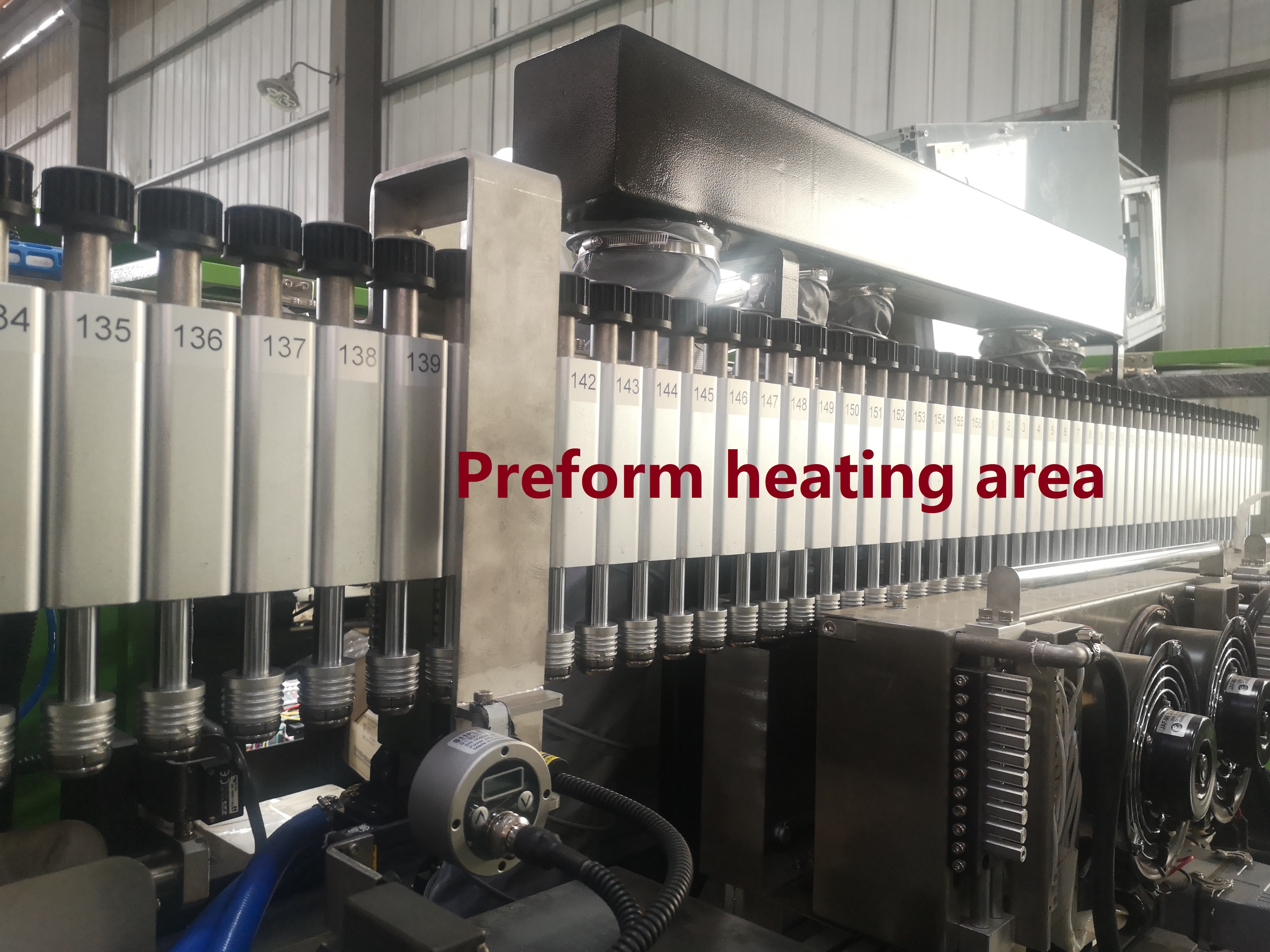

Preform heating ovens

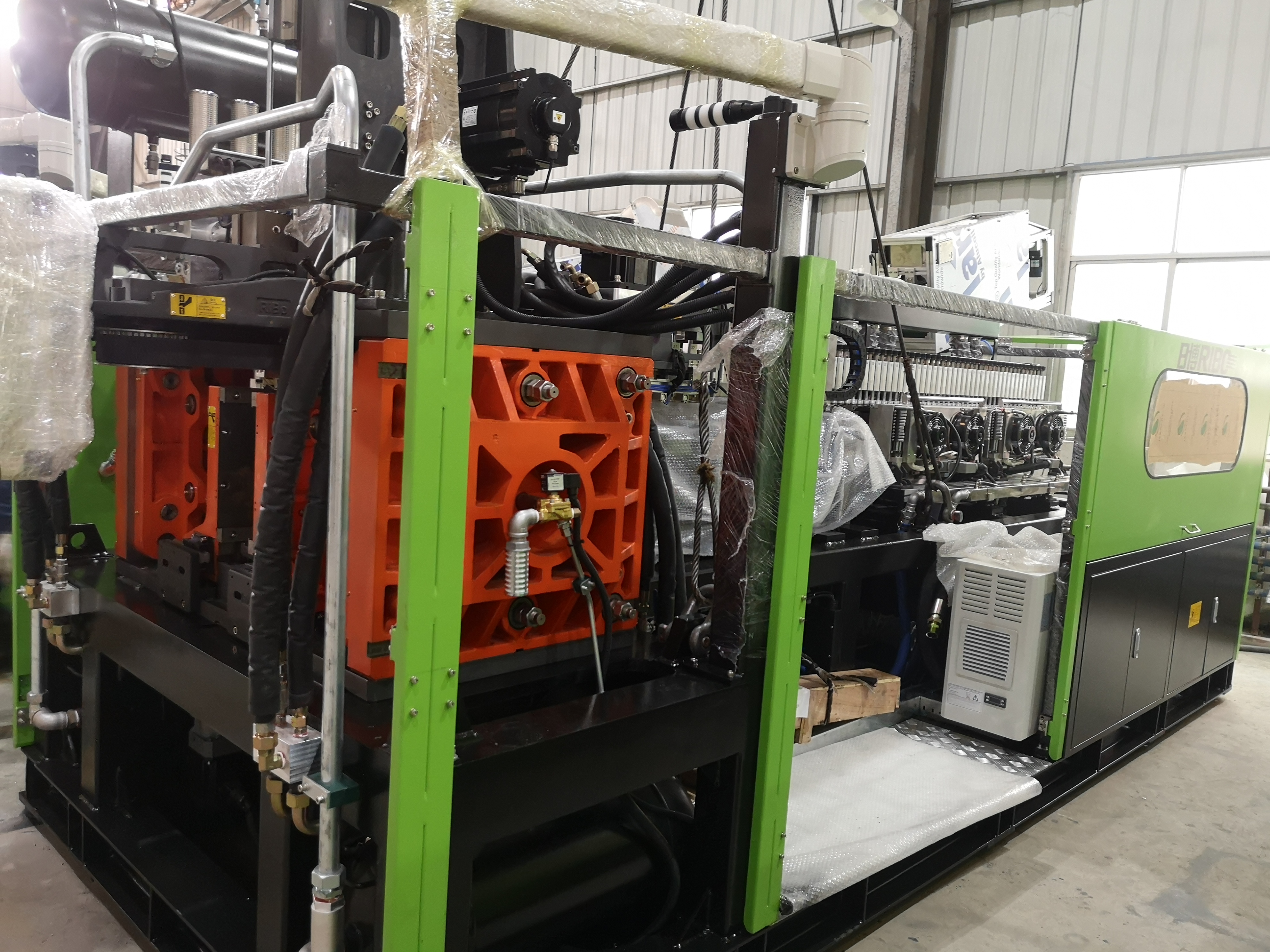

Ready for shipment to domestic customer factory
The machine is equipped with the units of preform temperature
detection,leaking bottle detection and rejection as well as jammed
air conveyor detection,etc,which ensures the machine work
efficiently and stably.
Technical parameter
| Items | Unit | Model |
| RiBo-8CR600 |
| Molding Spec. | Preform Pitch | mm | 76 |
|
| Preform Heating Pitch | mm | 38 |
| No.of Cav. | cav. | 8 |
| Container Spec. | Max.Container Volume | L | 0.7 |
|
| Neck Diameter Range | mm | 18~30 |
|
| Max.Containr Diameter | mm | 70 |
|
| Max.Containr Height | mm | 240 |
|
| ※※Theoretical Output | bph | 19000~16000 |
|
| Power Spec. | Rated Power | KW | 123 |
|
| Power Consumption | KW | 40~50 |
|
| Compressor Spec. | Blowing Pressure | Mpa | 2.5~3.2 |
|
| Air Consuming | m3/min | 8 |
|
| Main Machine Spec. | Size | mm | 6758*3331*3200 |
|
| Weight | Kg | 8500 |
|
| *Due to continuous technical development specification would be
improved without prior notice. |
| *Special designs correspond to customers needs. |
