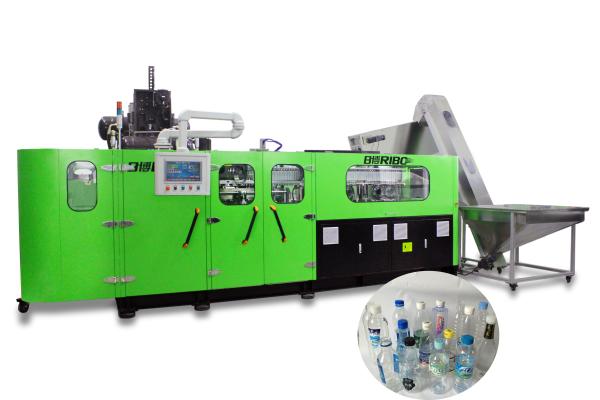

    16000BPH 12000BPH Automatic Blow Moulding Machine

    Technology Development


    Application of servo PLC system:


    Adopted Omron motion controller system (integration module type), using the PTO (servo positioning module) system for high-


    speed positioning, proximity sensors search the orbital target location, sending high-speed signals to the servo system. The


    position of the track is detected online by the high precision rotary encoder built-in the servo motor, sending back informations


    to the control system, finally, high-speed positioning is carried out by positioning module.


    Application of the servo motor


    The mould movement mechanism: Adopted the servo motor connect the gear box, synchronical transmission system is


    adopted to fulfill the reciprocating up and down motion of the two hinge mechanisms on both sides of the mold hauled by two


    linkage rods respectively. In this way, the two mold holding plates in the middle move oppositely or towards each other, which is


    generally known as mold opening and closing. The hauling wheel driven by the servo motor makes clockwise rounds


    continuously, reducing the power impact and the wearing, makes the mould clamping more smoothly. Each round leads to a


    complete cycle of mold holding plates movement------open and close. Also the high pressure air supercharged mold locking


    mechanism is applied which buffs the impact between mold plates and effectively protects molds. Besides, it does help to


    reduce the visibility of parting lines on finished bottles. The servo motor driven mold movement mechanism is designed and


    created upon rigid engineering simulation analysis, which ensures that the series of the mould motions are simple, accurate,


    consistent and speedy, making cycle time 0.2~0.4 seconds.


    The preform feeding and preform heating holders transfer mechanism: The preform feeding star wheel and


    preform heating holders transfer mechanism are driven by the servo motor synchronous belt linkage type drive step. For


    preform rotary heating system, the preform heating holders is controlled by variable frequency motor, preforms (preform neck is


    upwards) are 360 degree uninterruptedly rotary heating,48mm Preform heating pitch, more preforms are uninterruptedly heated


    within the same distance, which improves the efficiency and energy saving above 40%. The same servo motor is used to


    synchronously operate on a slide track for rotating high-speed stepping positioning to simplify the structure, which makes the


    stepping track speedy and stable, shorten the production cycle time and greatly improve the production efficiency.


    The perform after heated / variable pitch mechanism: This mechanisam is adopted the servo motor to connect the screw


    directly, the screw turns around, the pitch was changed from 48mm to 96mm directly, structure was changed to ensure high


    speed and accurate perform handling between the two mechanism.


    Preform transfer system with the grippers and bottle out-feed mechanism: Heated preforms delivering into the blow mould and


    the finished bottles out-feed driven by the same servo motor & the synchronous belt, to ensure the high speed and accurate for


    these two motions.


    The stretching mechanism (down stretching): the stretching rods are driven by a servo motor all at once, which


    ensures the synchronicity of the motion of the rods and makes it easier to do adjustment prior to production. (After


    interchanging the blow mould, makes it much easier to adjust the height of stretching rods, just need to input the datas on the


    touch screen, instead of doing the adjustment by manual.)


    Application of thermostatic heating system


    The modularized control system is used in the thermostatic flask blank heating oven, which use infrared lamps and reflector for


    heating preform. After setting the temperature value, the equipment can automatically adjust the output voltage according to the


    rate without being affected by voltage fluctuation and environmental temperature change. At the same time, it is also cooled by


    circulating air controlled by frequency converter, which can effectively guarantee the internal heating temperature and constant


    temperature of the heating ovens, and make the surface of each preform and its internal temperature uniformly heated.


    Moreover, the bottle rotates 360 degrees in the heating ovens, so that each side of the preform can be heated evenly, which


    improves the yield of blown bottle and the adaptability range of the thick-walled preforms.


    The application of the full closed-loop voltage regulator in preform heating system:


    The temperature of the heating ovens are controlled by the full closed-loop voltage regulator (with feedback) which


    independently developed by RiBo company. The controller detects and adjusts the output voltage (set value) at the scanning


    frequency of 218 times per second, so as to achieve the effect of evenly voltage output and solve the problem of unstable


    heating effect caused by the heat fluctuation of heating element (lamps) due to the voltage fluctuation of the power supply. In


    addition, the closed-loop control system interacts and cooperates with the original heating ovens’ constant temperature control


    system, greatly improving the heating temperature fluctuation caused by environmental temperature change. By application of


    the above technology in the bottle blowing machine, the heating uniformity and stability of each preform tend to be completely


    consistent, which finally ensures the stability and uniformity of the bottle blowing effect of each cavity. This closed-loop unit has


    further improved the overall performance of the bottle blowing equipment.


    The machine is equipped with the preform temperature detection at the end of the last heating oven, if the preform temperature


    does not reach the blowing temperature, the preforms going into the blow mould but no blowing, saving the air.


    Technical Parameter

    ItemsUnitModel
    RiBo-8CR2L
    Molding Spec.Preform Pitchmm120
    Preform Heating Pitchmm38
    No.of Cav.cav.8
    Container Spec.Max.Container VolumeL2
    Neck Diameter Rangemm18~30
    Max.Containr Diametermm114
    Max.Containr Heightmm320
    ※※Theoretical Outputbph16000~12000
    Power Spec.Rated PowerKW147
    Power ConsumptionKW48~68
    Compressor Spec.Blowing PressureMpa2.5~3.2
    Air Consumingm3/min8~10
    Main Machine Spec.Sizemm7869*3400*3200
    WeightKg10500
    *Due to continuous technical development specification would be improved without prior notice.
    *Special designs correspond to customers needs.
